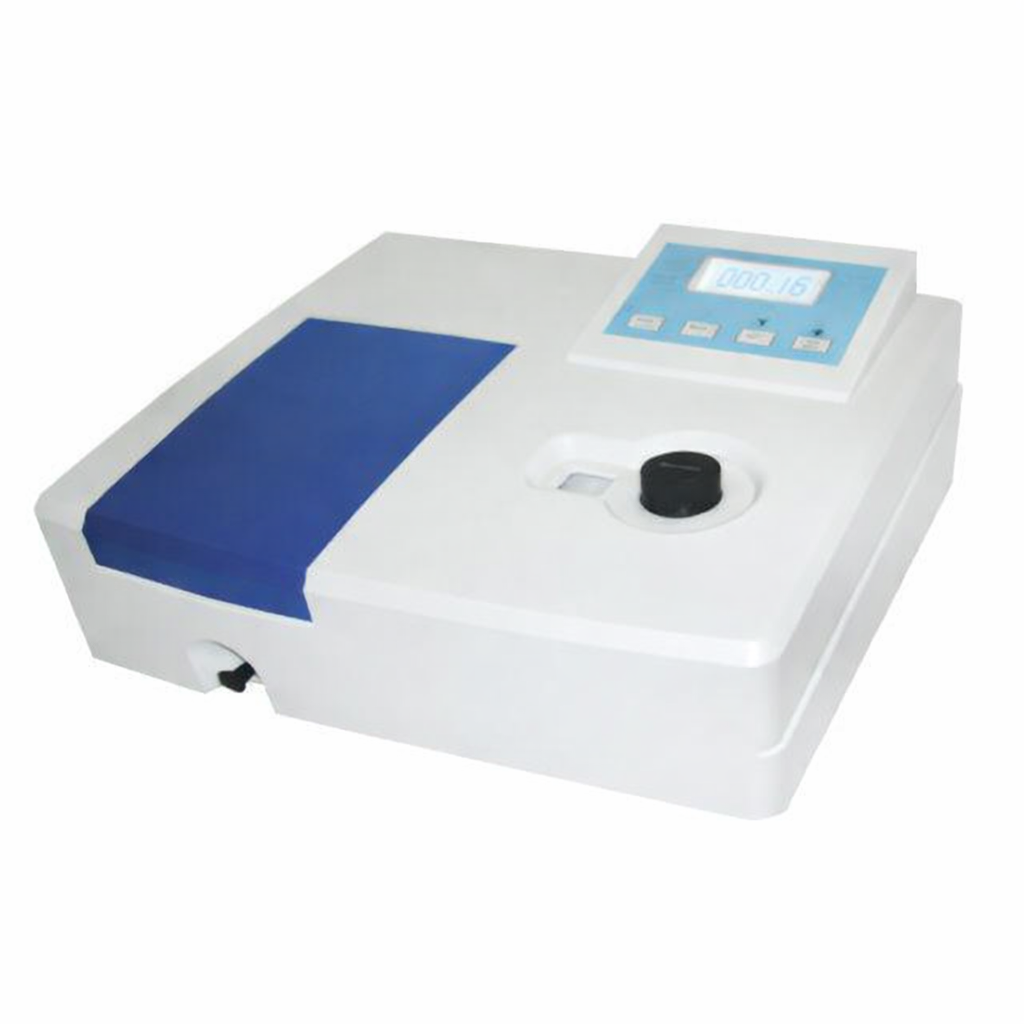

Microprocessor Single Beam Visible Spectrophotometer

Model : AV-325 | Make : ANALAB | HSN Code : 90273020

Supplied with Basic Unit, Glass Cell 10 mm - 04 Nos., Fuse (3A) - 02 Nos., Software CD, RS-232 Cable, Power Cable, Operation & Instruction Manual and Warranty Card.

Features:

• The monochromator with a holographic flashing grating is used. It has the advantage of high wavelength precision, good monochromaticity and low stray light.
• A sample compartment for 0.5cm - 10cm cells.
• Computer control system, precise automatic T/A changeover.
• Automatic zero and full scale adjustment.
• Direct concentration read-out and concentration factor setting function.
• Equipped with RS232 Port. Data can be sent to PC special software.

Technical Specification

• Wavelength Range : 325-1000nm
• Wavelength Accuracy : <2nm
• Wavelength Repeatability : <1nm
• Transmittance Accuracy : ±0.5%
• Transmittance Repeatability : <0.2%
• Spectrum Bandwidth : 2 nm
• Stray Light : <0.5% (at 360nm, NaNO2 )
• Light Current Drift : 0.5% / 3 min
• Dark Current Drift : 0.2% / 3 min
• Cell Holder : 10 nm
• Dimensions : 56 x 48 x 29cms
• Net Weight : 11.5 Kgs
• Gross Weight : 13.5 Kgs
