Tap Density Test Apparatus

Model : µTDCal10 | Make : ANALAB | HSN Code : 90318000

Technical Specification

• No. of Station : Two
• USP Compliance :
  1) USP1 (300 taps per min.)
  2) USP2 (250 taps per min.)
  3) USP3 (55 taps per min.) – Not Available with this Model
• Stroke Height : 14mm ±2mm / 3mm ±0.2mm
• Stroke / Minute : 300 ±10, 250 ±10, 55 ±5
• No. of taps : 1-9999
• Rotating and tapping motion : Simultaneous
• Display of Strokes/min : Simultaneously - Set & Actual
• Cylinder Supports : 100ml and 250 ml
• Pharmacopeia Complies : As per USP, IP, Ph. Eur.
• Calculation of result : Bulk Density, Tapped density, Compressibility index and Hauser ratio.
• Display : 16 x 2 Line Alphanumeric Backlit LCD
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

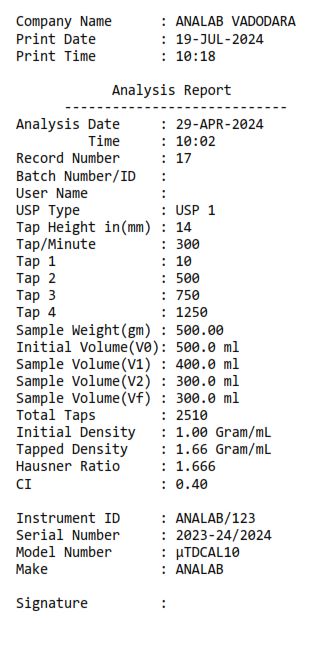

• Analysis Data Storage : More than 500 analysis data which can be viewed & Print, company name, analysis date & time, record number, *Username, *Sample Name, *Bath Number/ID, Tap/minute, Tap Hight, Tap Count 1, Tap Count 2, Tap Count 3, Tap Count Final, Tap Density, Bulk Density, Compressibility Index, & Hausner Ratio, instrument serial number, Instrument Make & Model & *Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
  (*: Not possible to enter data by instrument keypad but it will be handwritten)
• Searching of data : With record number by scrolling.
• Report Formation : As per Non-GLP Compliance
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
• Power Supply : 230VAC ± 10%, 50 Hz
