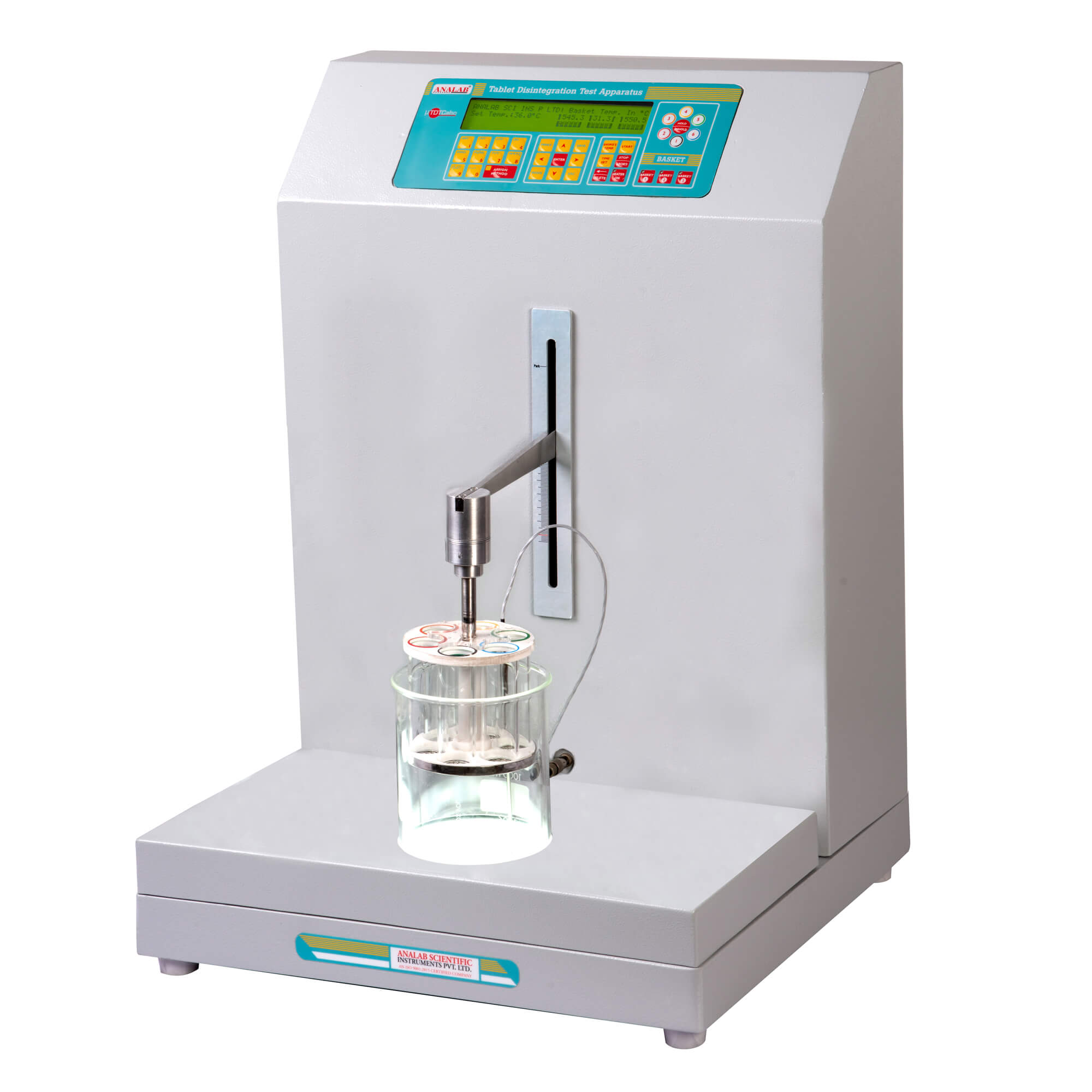

Tablet Dis-integration Test Apparatus
(Common Motor & Timer for Two Basket)

Model : µTDTCal10 | Make : ANALAB | HSN Code : 90318000

Supplied with 1000 ml Glass Beaker – 01 Nos., 6 tube basket assembly – 01 Nos., Guided Discs – 06 Nos., Temperature Probe – 01 Nos., Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specification

  • Stroke Length : 55mm ± 2mm
  • Number of Stroke Frequency Rate : 30 ± 2 Stroke Per Min.
  • Heating Technology : Bathless
  • Temperature Range : 5ºC (41 F) above ambient to 60ºC (140 F)
  • Temperature Accuracy : ± 0.2°C
  • Temperature Resolution : 0.1°C
  • Programmable Timer : 1 sec. to 9 hrs.: 59 min: 59 sec.
  • Heating time to 37°C : Less than 20 min.
  • Heater Capacity : DC Heater-150 Watt
  • Temperature Sensor : PT-100
  • Number of Motor : One
  • No of Timer : One
  • Number of Basket : Two (Six Test Tube Per Basket)
  • Control of Basket : Common Motor & Timer for Two Basket
  • Display : 40 x 4 Line Alphanumeric Backlit LCD
  • Loading of Basket : Magnetised for ease of cleaning.
  • Illumination : White Light for better visibility of dis-integration process
  • Parking of Basket : Automatic after completion of test
  • Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
  • Pharmacopeia Complies : As per USP, IP, Ph. Eur.
  • Date : 12/24 Hours Format
  • Time : Real time clock
  • Searching of data : With record number, Date and by scrolling
  • Report Formation : As per Non-GLP Compliance
  • Analysis Data Storage : More than 750 data can be store in non-Volatile Memory which can print & view company name, print date and time, analysis date & time, record number, pharmacopeia, analysis done on, model number, serial number, instrument ID, individual dis-integration time of each sample when you did visually detect the dis- integration of the tested sample by simply pushing the relevant character key (1-6), Basket Set & Actual Temperature, Media Used, etc. Secondly, data can print online without saving analysis data in the instrument.
  • Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
  • Printer : 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
  • Power Supply : 230 VAC ±10%, 50 Hz
