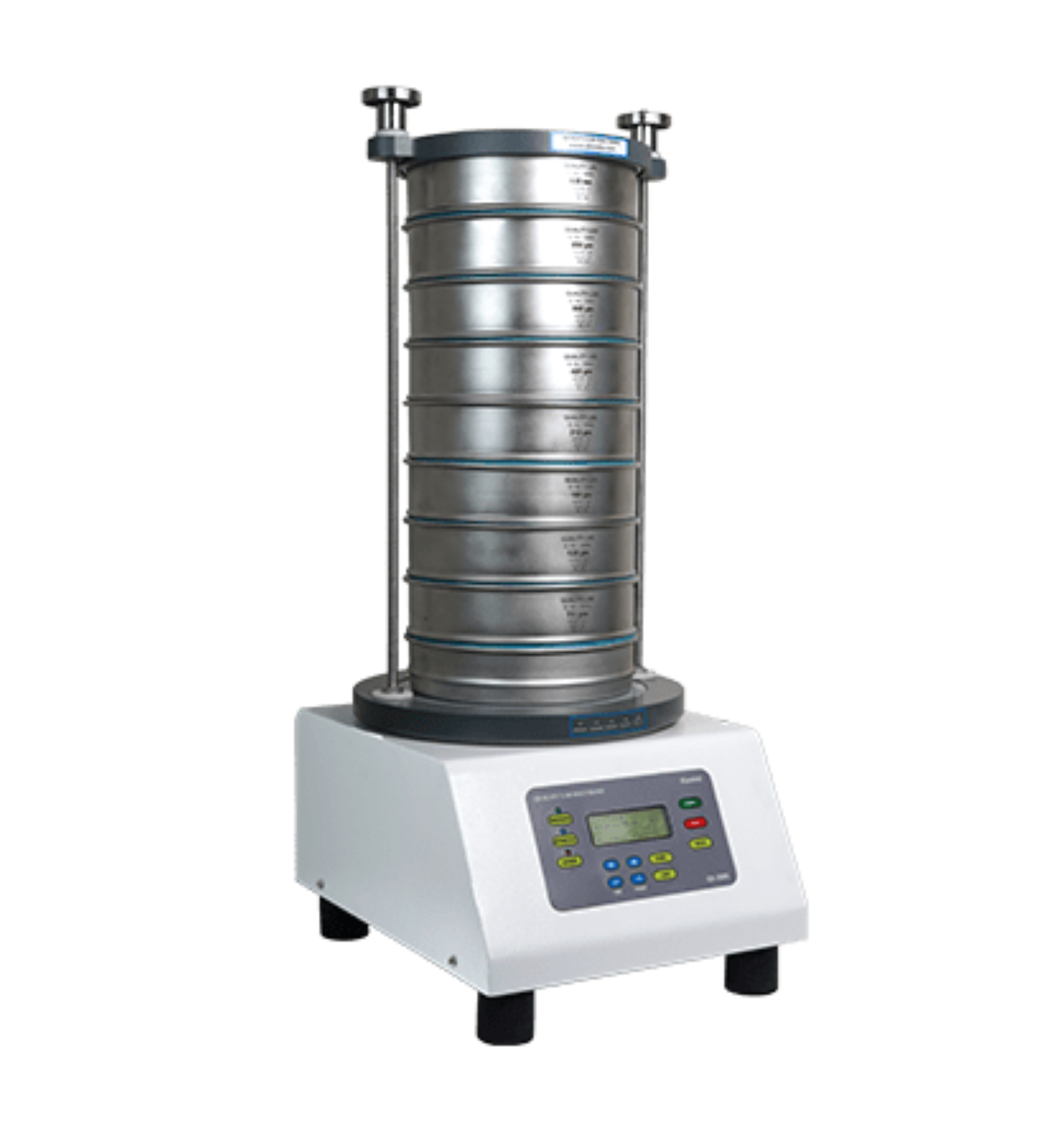

Model : SS 200 | Make : ANALAB | HSN Code : 8474
Supply with Vertical Rod – 02 Nos. and Basic Knob - 02 Nos.
Body Made of M.S. galvanized & power coated.
Features:
* Storage facility of sop up to 8 programs
* 3 Functional Mode Continuous, intermittent, Advance
* 3D – Shifting Motion
* Simultaneous Programming Features for Continuous & Intermittent Mode.
* Total cycle Time can be Distributed Between Continuous & Intermittent Mode through Advance Mode as Per
Requirement which Allows More Precise Results
* Ideal for particle size analysis and separation
* Very low noise operation with low maintenance
* Programmable shake time from 1 min to 99 min
* Suitable for dry and wet sieving
Specifications:
* Dry sieving: Standard
* Mode of operation: 3 modes (Continuous, intermittent & Advance)
* Intermittent operation: At intervals (0.5 sec)
* Advance mode: Programmable time for Continuous & intermittent (Together) in this mode
* Capacity: Up to 8 sieves of 200 mm dia x 50mm h
: Upto 16 sieves of 100 mm dia x 25mm h
: Suitable for sieves from 10 µm to 8mm
* Shake time: Programmable from 1 min to 99 min
* Power level: Programmable from 1 to 20
* Amplitude : 0.1 mm to 2.5 mm
* Display: 20 x 4 character alphanumeric LCD
* Noise level: Less than 61 dB without sieves at Maximum amplitude
: Less than 71 dB with sieves and Material at maximum amplitude
* Power: 220/230V AC, 50 Hz, 600 VA
* Dimensions (L x W x H) : 385 x 305 x 245 mm
* Weight: 50 kgs without sieves (Approx.)
