Microcontroller Based Melting/Boiling Point Apparatus

Model : µThermoCal10+ | Make : ANALAB | HSN Code : 90278990

Supplied with 250ml Beaker, Teflon Lid, Tubular Heater, RTD Sensor, Silicon Oil (200g Bottle), Melting Capillary One End Sealed (Pack of 100 Nos.), Boiling Tube, Teflon Coated Magnetic Paddle, Sample Tapping Rod, Two Melting Standards 49ºC and 238ºC Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specification

• Temperature Controller : Microcontroller Based
• Heating Media : By Silicon Oil
• Temperature Range : +5°C above ambient to 300ºC
• Readability : 0.1°C
• Temperature Accuracy : ±0.5°C
• Overheating Protection : 20ºC above expected melting point
• Safety Features : Heater will not turn on, if stirrer is off
• Temperature Calibration : On-site with calibrated thermometer / temperature indicator / Pharmacopeia Standard
• Magnetic Stirrer : Built-in with soft touch Key speed controller
• Melting Capillary Port : Three
• Boiling Tube : One
• Restore Factory Set Calibration Data: Possible by user
• Heating Before Set Point (EMP)* : Automatic heating depending upon temperature difference
  (* EMP: Expected Melting Point)
• Heating After Set Point (EMP)* : Approx. 1.0°C/min
• Temperature Sensor : Simplex PT-100
• Glass Melting Capillary : OD: 1.4 to 1.6mm | ID: 1.0mm | Length: 100mm | One End Sealed
• Sample Filling Height : 3mm
• Viewing of Melting Capillary : 10x Magnifying Glass
• Display of Melting Range : Simultaneous MP1 (On set temperature) & MP2 (Clear temperature)
• Display : 16 x 2 Line Alphanumeric Backlit LCD
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

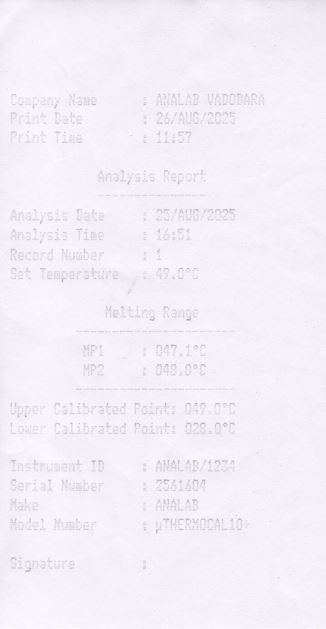

• Report Formation : As per Non-GLP Compliance
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
• Power Supply : 230 VAC ± 10%, 50 Hz
