Microcontroller Based Karl Fischer Titrator
With 21 CFR Part-11 Compliance

Model : µAquaCal100 | Make : ANALAB | HSN Code : 90278990

Technical Specification

• Method of Detection : Conductometric / Volumetric
• Range of Moisture Detection : Better than 50 ppm to 100% (depends upon type of sample)
• Dispensing Resolution : 0.001ml
• Magnetic Stirrer : Built-in with soft touch Key speed controller
• Calibration : Average factor can be calculated by
  1) Water by volume
  2) Water by weight
  3) By DST

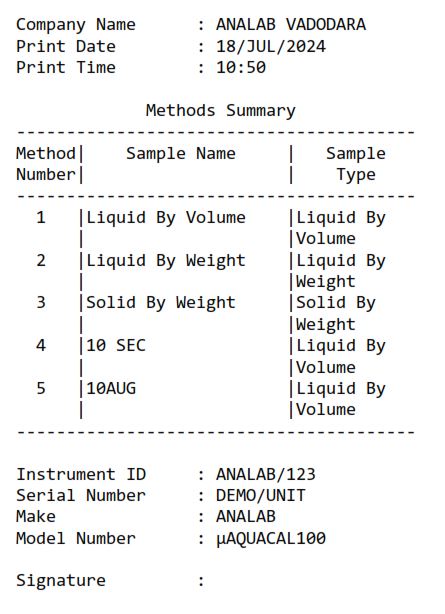

• Method : 40 with Three pre-assigned methods
  1) Liquid by volume
  2) Liquid by weight
  3) For Solid sample

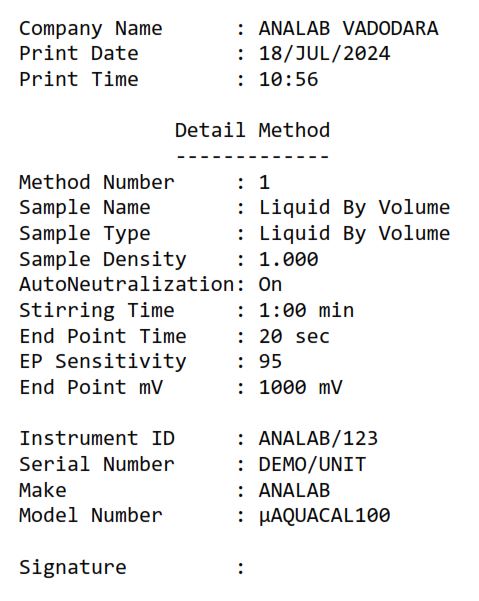

  Method No. 4-40 are customized with View, Print & Delete facility.
• Auto Neutralization : On / Off - users selectable - reduces the time between analysis & gives accurate results
• Stirring Time : 00:00 to 99:00 (mm:ss) – users adjustable
• End Point Sensitivity : 80-100 - users adjustable
• End Point Time : 1-20 seconds - users adjustable
• End Point mV : 1000-3000 mV - users adjustable
• End Point Detection : By Audio & Visual Alarm
• Calibration Reminder Alarm : 0-99 Hours
• Over titration Alarm : Audio / Visual Alarm at 15 ml to save KF Reagent
• Display of Reading : Moisture in ppm, percentage (%), mg/ml of water, gm/L, Mol/L
• Auto Drain : For cleaning reaction vessel - useful for large & multiple volume sample
• Flush : For cleaning dispensing path
• Calculation of % RSD : Possible
• Average KF Factor Calculation : Automatic – Maximum 5 factor can be stored in memory.
• Weight Entry : In Resolution of 0.1 mg / 0.01 mg – users selectable
• Weight Transfer : Possible through RS-232 Port (From Balance to AKF)
• Balance Interface : Yes, with RS-232 Port
• Dispenser Calibration/Validation: Onsite by user
• Dispenser MOC : SS-316L & Teflon for Corrosion Protection & Maintenance Free Operation
• Dispenser type : Motorized - For accurate measurement
• Teflon Tube : To transfer KF reagent from KF reagent bottle to dispenser & dispenser to reaction vessel
• Material of Construction : Epoxy Based Powder Coated Metallic Body / GMP Enclosure made up of Stainless Steel
• Type of Electrode : Dual Platinum - Combined Type
• Input : Electrode with Banana Connector
• Error Messages : “Over KF”, “KF Factor Error”, “Max. Factor Reached” & “Low Memory”
• Short Link : Provided to diagnose the problem either with Instrument OR Electrode
• Display : 20 x 4 Line Alphanumeric Backlit LCD
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

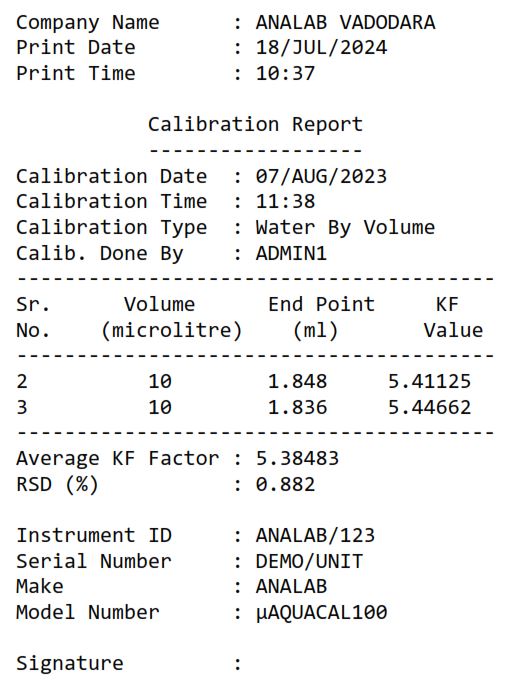

• Calibration Data Storage : Non-Volatile Memory which can store, print & view calibration date & time, calibration method, calibration done by, stirring time, average KF factor, % RSD, instrument serial number, instrument ID etc.

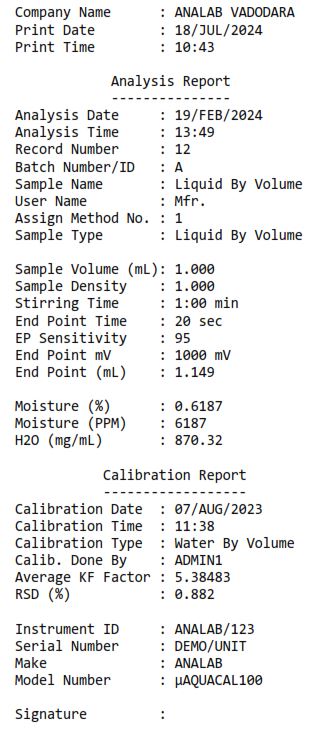

• Analysis Data Storage : More than 1500 analysis data, with corresponding calibration data company name, analysis date & time, record number, batch / ID number, sample name, username, sample type and method, sample volume (ml / mg), sample density (for liquid sample), stirring time, end point time, end point in ml, moisture result in %, ppm & H2O (mg / ml), analysis done on, instrument serial number, instrument ID etc. Secondly, analysis data can be print online.
• Searching of data : With record number, batch number/ID, date, date range and by scrolling.
• Report Formation : As per GLP Compliance
• 21 CFR Part-11 Compliance :
  ● In-built with system for ease of operation without PC.
  ● 2 Admin, 10 Reviewers, 40 Users & 1 Manufacturer with individual Login ID & Passcode.
  ● Audit trail can store more than 5000 lines in instrument.
  ● Audit trail includes action taken, date & time, action taken by whom.
  ● Audit trail can be transfer to PC through ANALABsafe software and can print on 40 / 80 column dot matrix printer for record.
  ● Admins can set up operation permission of each Users & Reviewers.
  ● Strict Admins control to audit and monitor usage and access.

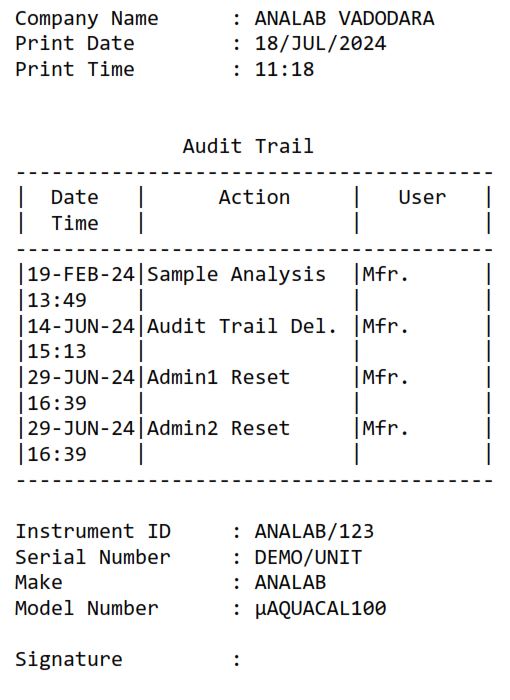

  ● Audit trail record can be printed with Date, Date Range and by individual User’s ID.
  ● Once Audit trail transfer to the PC or Printer, system will delete Audit trail records and before final deletion, the system will give warning twice.
  ● Data integrity with database capability to store Analysis Data, Calibration Data, Calibration and Analysis Method, Audit trail and Passcode in instrument.
  ● No direct access to data from outside the instrument, thereby creating a closed system.
  ● Audit traceability to ensure that the device and results are appropriately handled.
  ● Auto User’s logout after defined Logout time.
  ● Auto Users & Reviewers block when password is entered incorrectly 3 consecutive times.
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
• PC Interface : USB Type - B
• PC Connectivity : By USB Interface Cable with Driver, ANALABsafe software to transfer Analysis data in GLP format, Calibration data and Audit trail from Instrument to PC in non-editable format (Cannot be Deleted)
• Power Supply : 230 VAC ±10%, 50 Hz
