Friability Test Apparatus - Double Drum
With 21 CFR Part-11 Compliance

Model : µFTCal100 | Make : ANALAB | HSN Code : 90318000

Supplied with Roche Drum – 02 Nos., Drum Holding Knob with rubber bush, Removable Tablet Collecting SS Tray – 02 Nos., Acrylic Tablet Collecting Holder for SS Tray – 02 Nos., Power Cord, ANALABsafe software, USB Interface Cable, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specifications

  • Speed : Variable from 20 to 70 / 100 RPM
  • Accuracy : ±0.5 RPM
  • Timer : Variable from 1 sec. to 9 hrs. 59 min 59 sec.
  • Counter : 1 to 9999 revolutions
  • No. of Drums : Two
  • Pharmacopeia Complies : As per USP, IP, Ph. Eur.

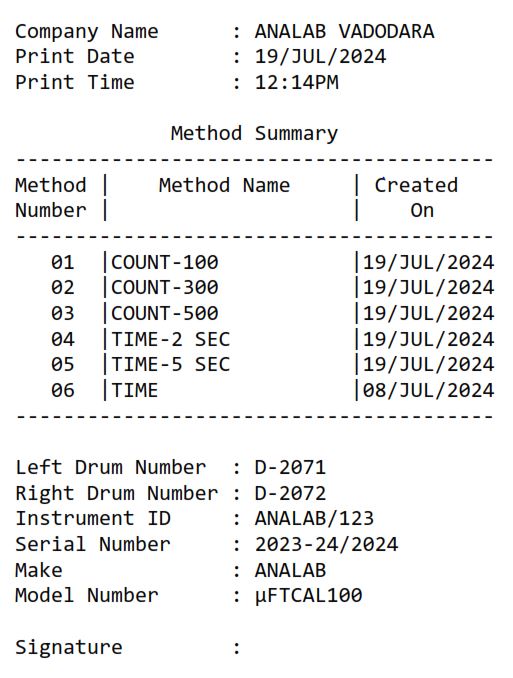

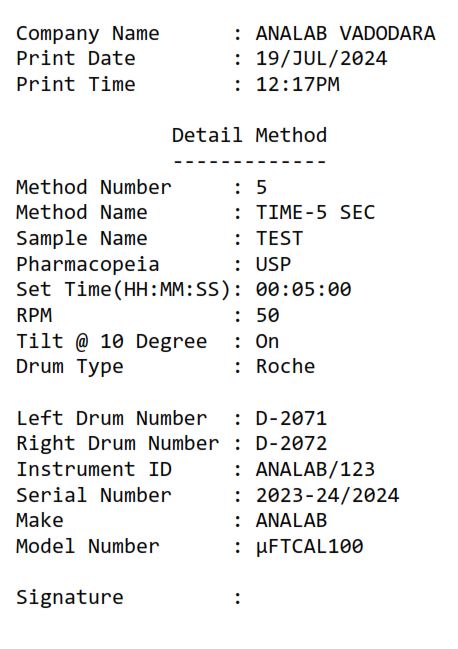

  • Method : 40 analysis method for single friability test with View, Print & Delete facility.
  • Weight Transfer : Possible through RS-232 Port (From Balance to Instrument)
  • Tablet Discharge : Automatic in the Sample tray from drum after completion of analysis.
  • 10º Tilt : With Audio Visual Alert message
  • Calculation of result : Friability in %
  • Calibration : RPM and Count (Automatic)
  • Verification : RPM, Count and Time
  • Power failure detection : Un-interrupted tablet testing after power resume.
  • Display : 20 x 4 Line Alphanumeric Backlit LCD
  • Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

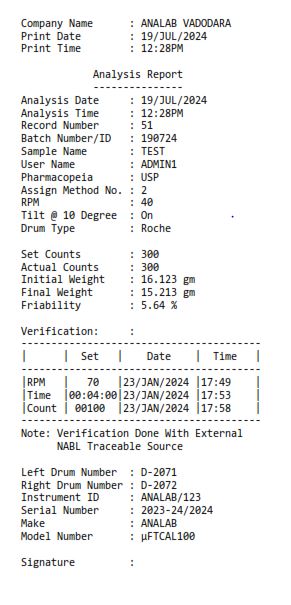

  • Analysis Data Storage : More than 1500 data can be store in non-Volatile Memory which can print & view company name, print date and time, analysis date & time, record number, batch number / ID, sample name, username, pharmacopeia, assigned method number, RPM, tilt status, drum type, set and actual counts, initial and final weight, friability result, analysis done on, model number, drum ID, serial number, instrument ID etc. Secondly, analysis data can be print online.
  • Searching of data : With record number, batch number, Date and by scrolling.
  • Report Formation : As per GLP Compliance
  • 21 CFR Part-11 Compliance :
    ● In-built with system for ease of operation without PC.
    ● 2 Admin, 10 Reviewers, 40 Users & 1 Manufacturer with individual Login ID & Passcode.

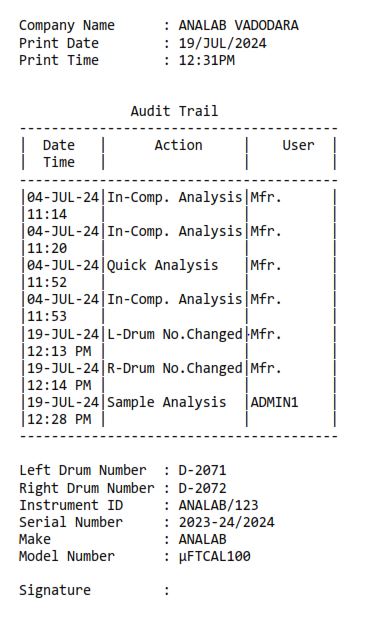

    ● Audit trail can store more than 5000 lines in instrument.
    ● Audit trail includes action taken, date & time, action taken by whom.
    ● Audit trail can be transfer to PC through ANALABsafe software and can print on 40 / 80 column dot matrix printer for record.
    ● Admins can set up operation permission of each Users & Reviewers.
    ● Strict Admins control to audit and monitor usage and access.
    ● Audit trail record can be printed with Date, Date Range and by individual User’s ID.
    ● Once Audit trail transfer to the PC or Printer, system will delete Audit trail records and before final deletion, the system will give warning twice.
    ● Data integrity with database capability to store Analysis Data, Calibration Data, Calibration and Analysis Method, Audit trail and Passcode in instrument.
    ● No direct access to data from outside the instrument, thereby creating a closed system.
    ● Audit traceability to ensure that the device and results are appropriately handled.
    ● Auto User’s logout after defined Logout time.
    ● Auto Users & Reviewers block when password is entered incorrectly 3 consecutive times
  • Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
  • Printer : 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
  • PC Interface : USB Type – B
  • PC Connectivity : By USB Interface Cable with Driver, ANALABsafe software to transfer Analysis data in GLP format, Calibration data and Audit trail from Instrument to PC in non-editable format (Cannot Delete)
  • Power Supply : 230VAC ± 10%, 50 Hz
